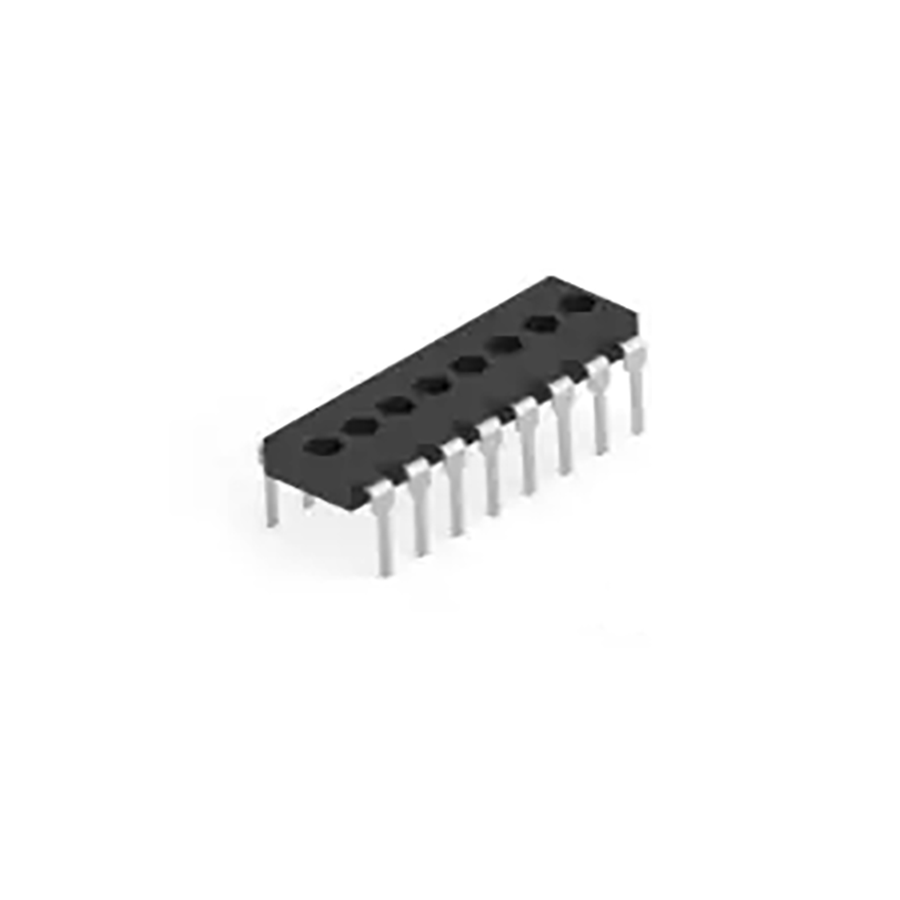

1825190-7
Manufacturer:
TE Connectivity
Mfr.Part #:
1825190-7
Datasheet:
Description:
DIP Switches Through Hole Programmable Number of Positions:8 Current Rating:2 A Breakable (Shunt)
| Parameter | Value |
|---|---|
| Height - Seated (Max) | 2 mm |
| Length | 20.2946 mm |
| Termination | Through Hole |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -55 °C |
| Circuit Type | Programmable |
| Packaging | Tube |
| RoHS | Compliant |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Copper Alloy |
| Current Rating | 2 A |
| Number of Contacts | 8 |
| Number of Positions | 8 |
| Housing Color | Black |
| Actuator Type | Breakable (Shunt) |
Stock: 4145
Distributors
pcbx
pcbxUnit Price$0.87630
Ext.Price$0.87630
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.87630 | $0.87630 |
| 10 | $0.73182 | $7.31820 |
| 25 | $0.66410 | $16.60250 |
| 50 | $0.60264 | $30.13200 |
| 100 | $0.54687 | $54.68700 |
| 300 | $0.49626 | $148.87800 |
| 500 | $0.45033 | $225.16500 |
| 1000 | $0.40866 | $408.66000 |
